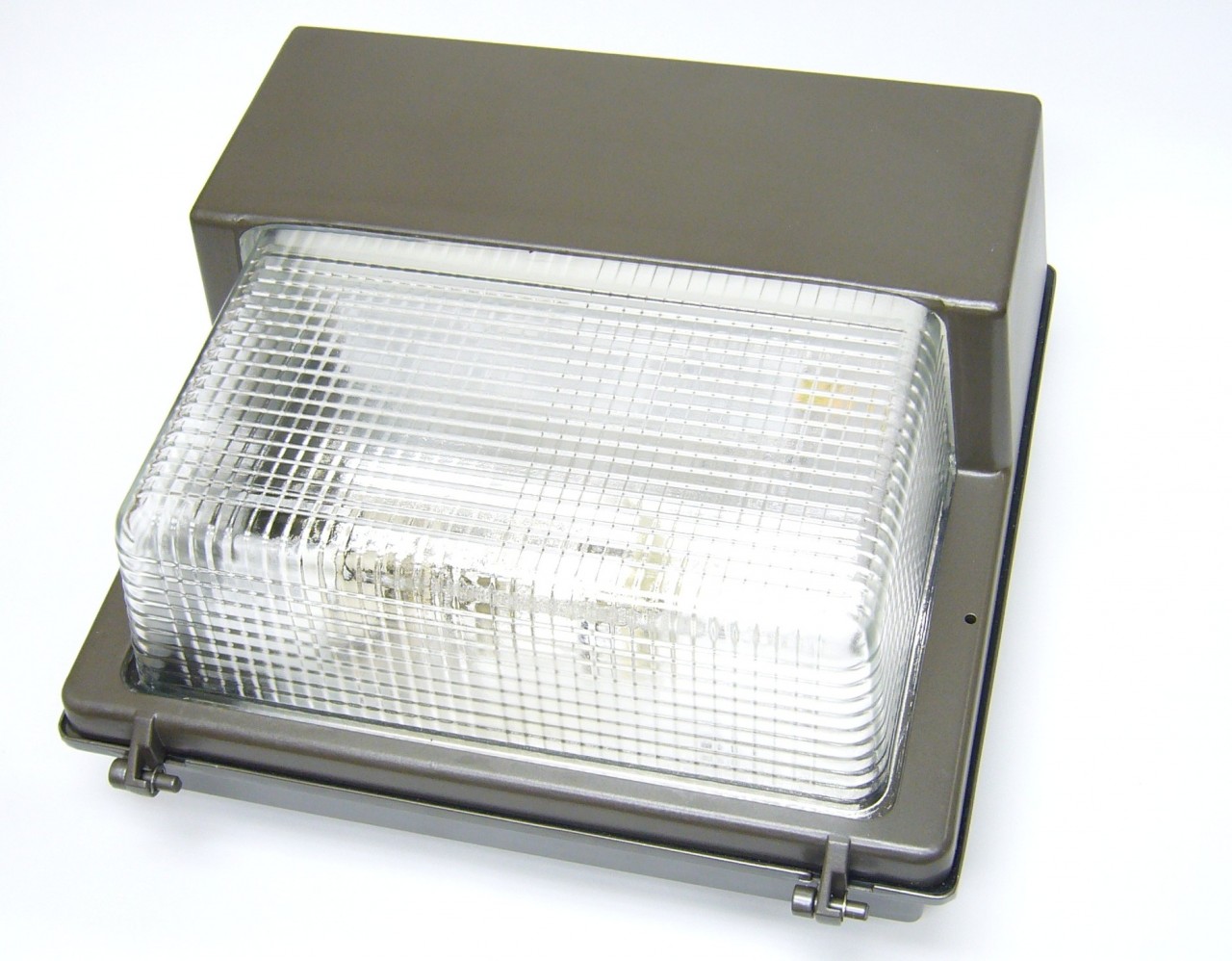

SURFACE MOUNT WALL PACK

ELECTRICAL

Voltage: QUAD
Watts: 400
Lamp Type: MH mogul base (Lamp included)
Ballast: PS
Socket: Porcelain 5kv pulse rated mogul base

HOUSING
One piece die cast aluminum lamp and ballast housing with high impact, heat resistant, prismatic borosilicate glass diffuser housed in a die cast aluminum hinged lens frame.  Design allows for easy lamp access and secures to the housing with 2 stainless steel screws.  A one piece silicone gasket completely seals the housing and lens frame, locking out moisture and dust.

OPTICS & LENS
High impact, heat resistant, prismatic borosilicate glass diffuser.  Faceted anodized aluminum reflector.

SURFACE WALL MOUNTING
Housing is supplied with 1/2" top and side entry threaded hub for thru wire installation.  Easily installs over standard 4" junction box.

FINISH
Standard finish is all-weather bronze polyester powder coating.

DIMENSIONS

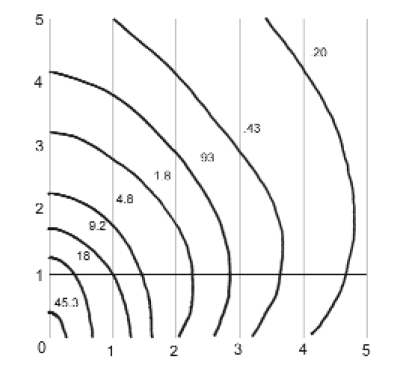

PHOTOMETRICS

Warranty

North Star Lighting warrants all equipment to be free from defect in manufacturing, under normal and proper storage, installation and use, for a period of one (1) year from date of shipment from our factory or facility of authorized representative. Our guarantee liability extends only to the repair or replacement of the defective parts. Repair or replacement will be the sole option of North Star Lighting. No labor charges for correction of the defect by repair or replacement will be allowed by North Star Lighting unless prior written authority has been granted by the company. Full one year warranty may NOT be extended to certain lamps that have a manufacturer's published rated life consisting of use equaling less than one (1) year.
