SURFACE MOUNT WALL PACK

ELECTRICAL

Voltage: QUAD
Watts: 400
Lamp Type: PS (Lamp included)
Ballast: PS
Socket: Mogul base.

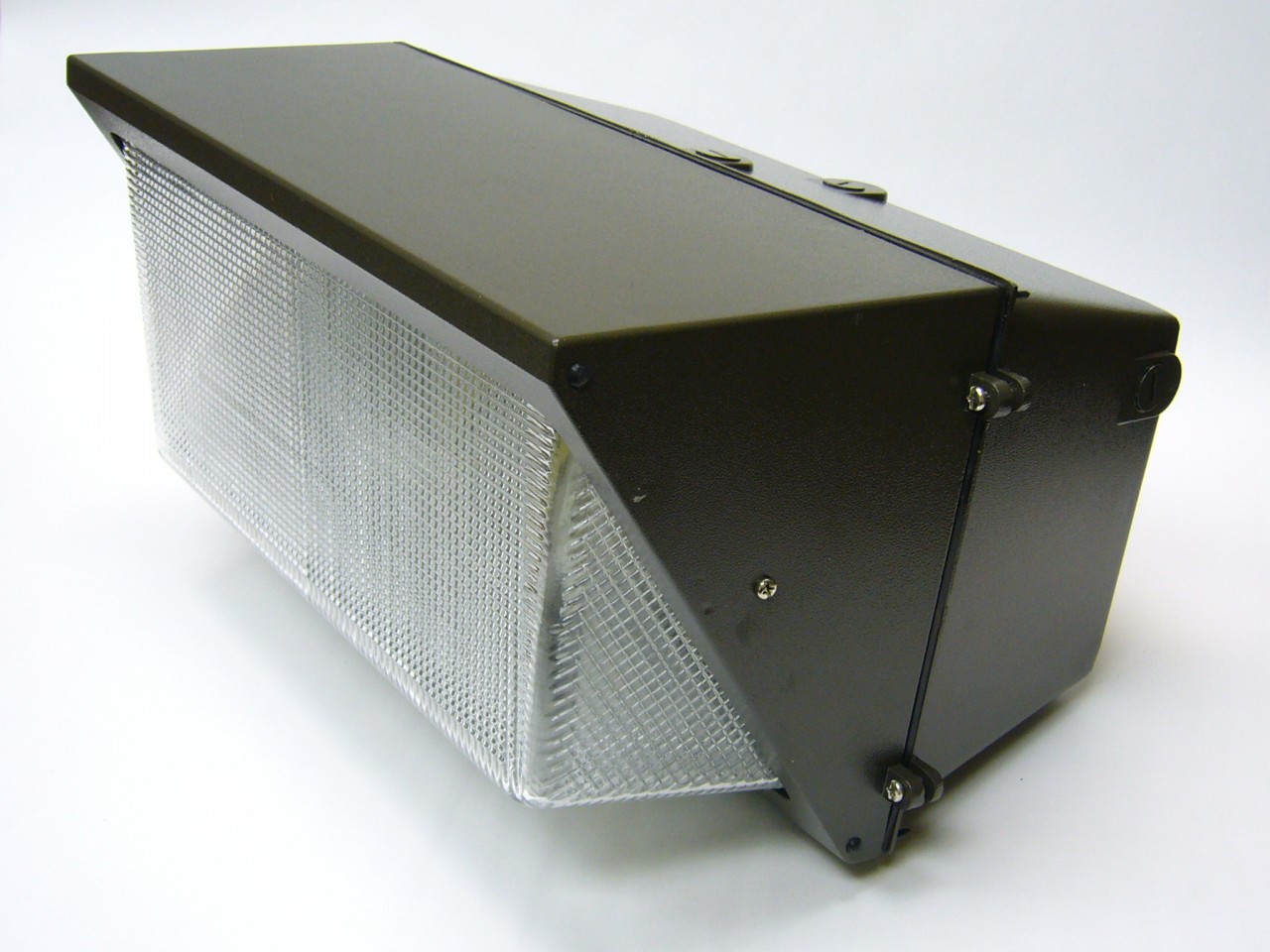

HOUSING
One piece die cast aluminum lamp and ballast housing with high impact, heat resistant, prismatic borosilicate glass diffuser housed in a die cast aluminum hinged lens frame. This design provides easy lamp access and secures to the housing with 2 stainless steel screws. A one piece silicone gasket completely seals the housing and lens frame locking out moisture and dust. WPLD is finished in all weather bronze polyester powder coating. The housing is supplied with 1/2” top and side entry threaded hub for thru wire installation. Easily installs over standard 4” junction box.

OPTICS & LENS
The combination of a one-piece faceted anodized aluminum reflector and theprismatic borosilicate glass diffuser provides a uniform wide beam distribution.

SURFACE WALL MOUNTING
Heavy-duty die-cast aluminum wall plate mounted to the wall and easy mounting to standard J-Box or mounting plates.

FINISH
Standard finish is thermo-set bronze powder coating.

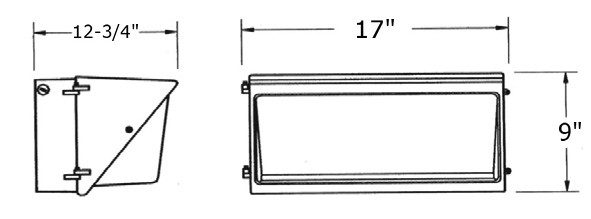

DIMENSIONS

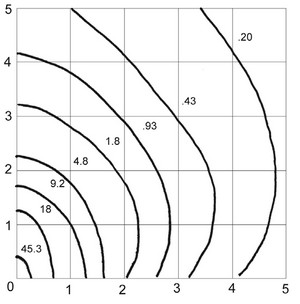

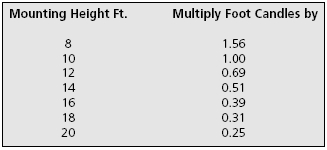

PHOTOMETRICS

Warranty

North Star Lighting warrants all equipment to be free from defect in manufacturing, under normal and proper storage, installation and use, for a period of one (1) year from date of shipment from our factory or facility of authorized representative. Our guarantee liability extends only to the repair or replacement of the defective parts. Repair or replacement will be the sole option of North Star Lighting. No labor charges for correction of the defect by repair or replacement will be allowed by North Star Lighting unless prior written authority has been granted by the company. Full one year warranty may NOT be extended to certain lamps that have a manufacturer's published rated life consisting of use equaling less than one (1) year.
